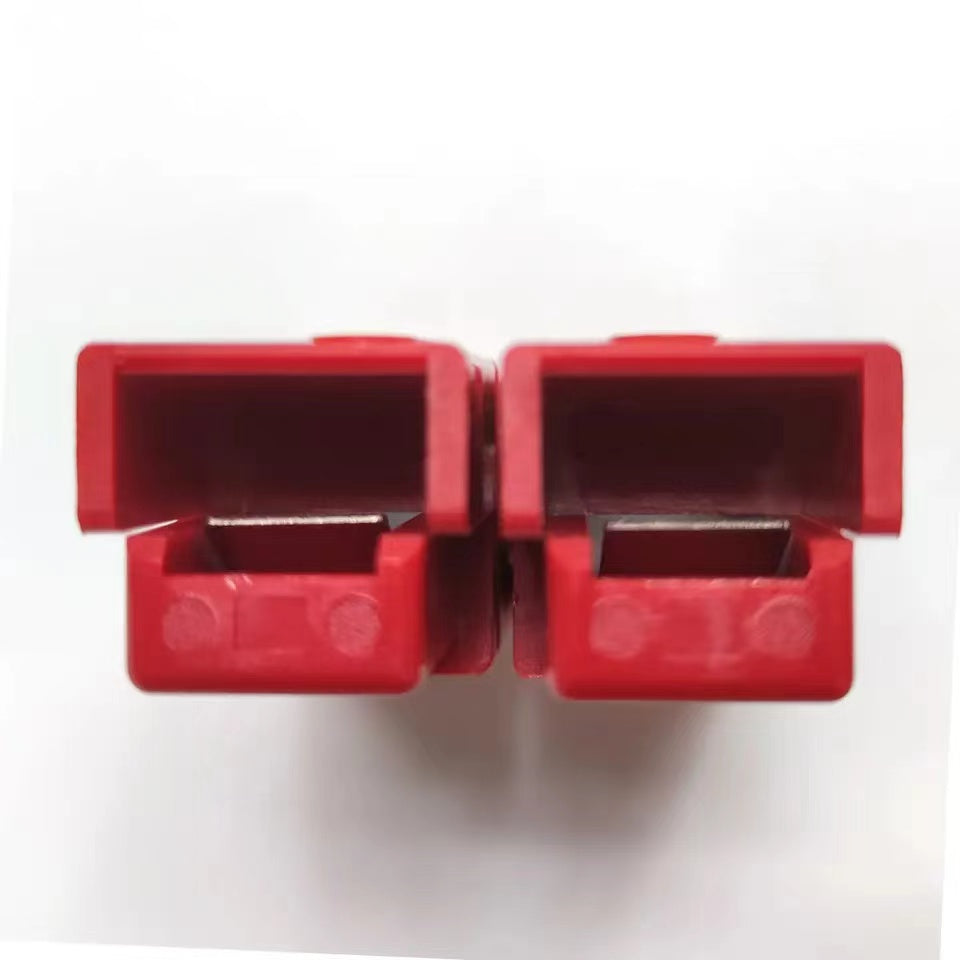

30 Amp Power Pole Red Black Connector For Anderson Style Plugs Marine Power Connector Copper Terminal

Product parameters:

- Material: Polycarbonate (PC) shell, stainless steel shrapnel, copper

- Color: red and black

- Current: 30A

- Available wire diameter (AWG): 12-16AWG

- Rated voltage: 600V

- Interface mode: plug

- Working frequency: high frequency

- Quantity: 1 pairs (1 black 1 red)

- Wiring size (AWG): 16/20-10/12AWG (0.52/1.3mm2-3.3/5.3mm ²)

- Average contact resistance: 0.6m Ω

- Withstand voltage: 2200V (DC)

- Insulation resistance: 500M Ω

- A. No load (Contact/Disconnect Cycles)

- B. With load (hot plug times @ 120v) Under Load (Hot Plug 250 cycles@120V ) To10,00030A

- Average plugging force: 26N

- Fire rating of rubber shell: UL94 V-0

- Operating temperature: - 20 ° to 105

- Contact material: silver plated copper

- Locking force between terminal and rubber case: 90N

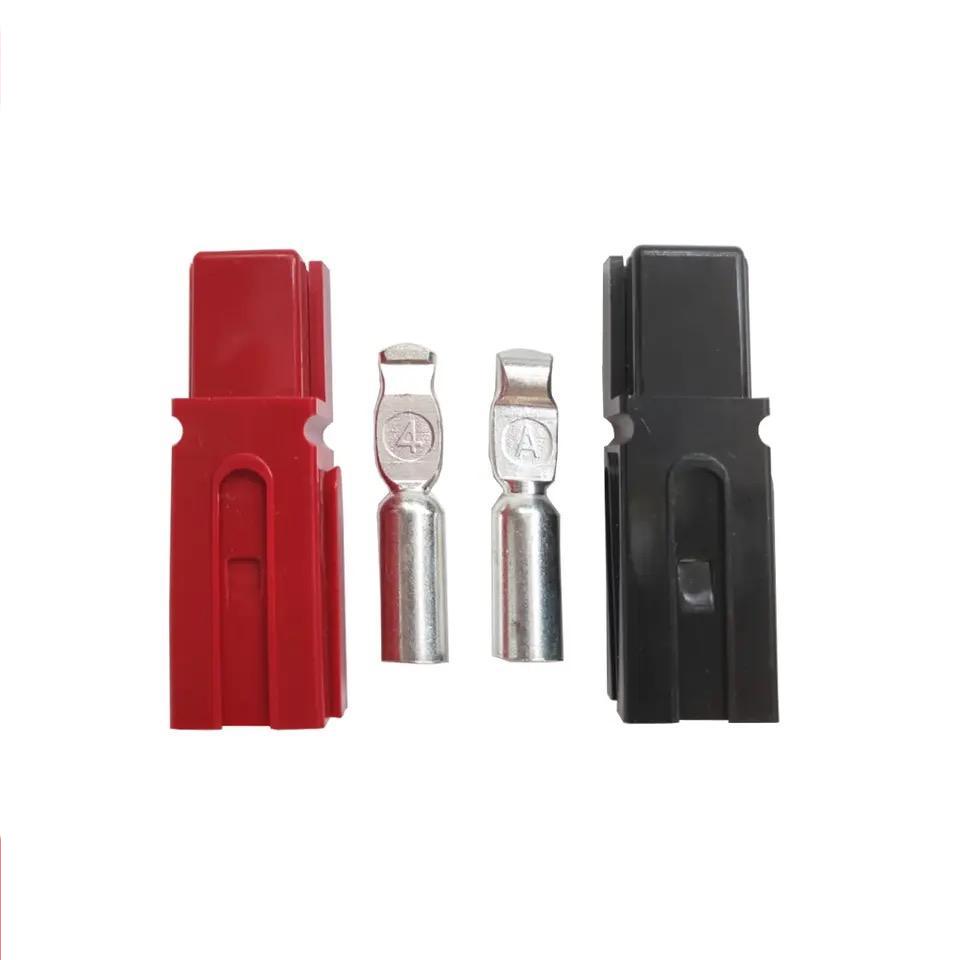

Packing included:

1  *Red Shell

1  * Black Shell

2*Terminals
